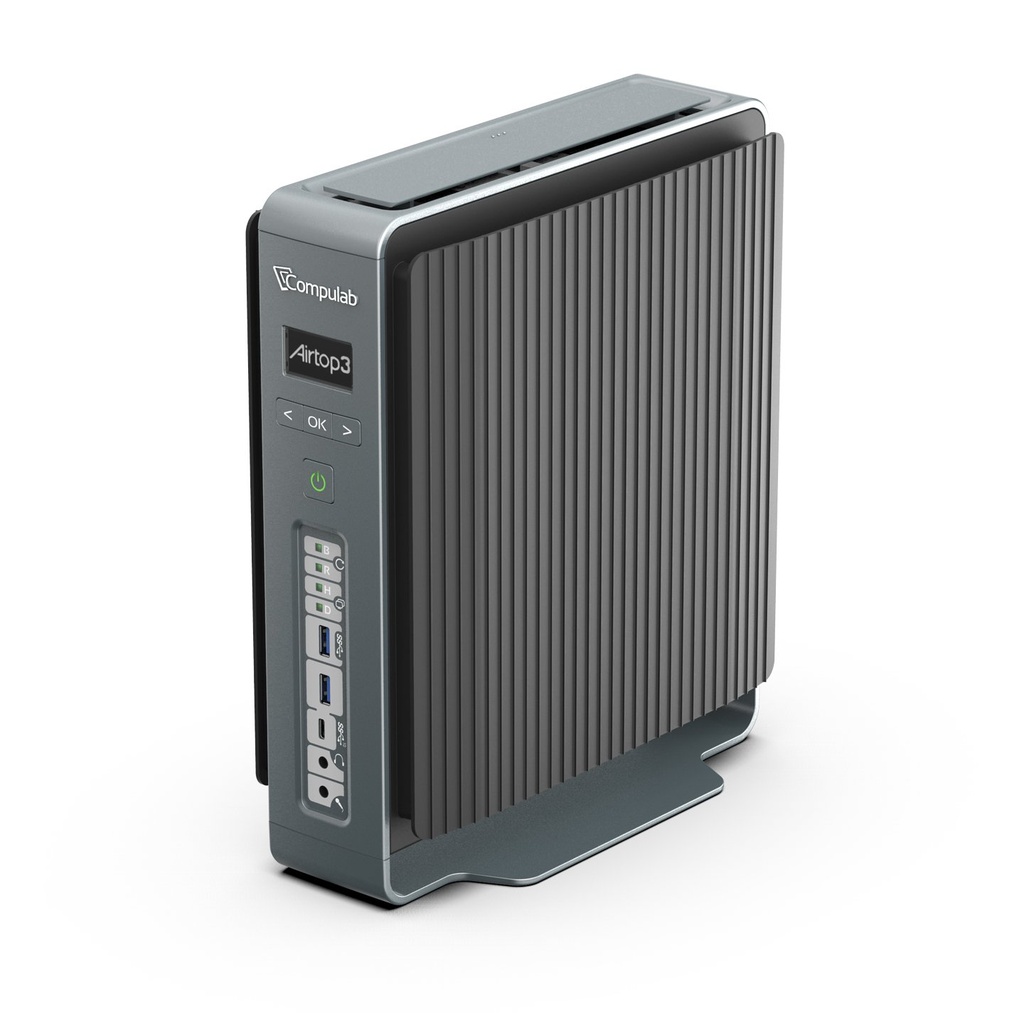

Airtop3 Configurable
Értékesítési leírás
| Display: 2 x DisplayPort 1.2 – 4K @ 60 Hz és 1 x HDMI 1.4 – 4K @ 24 Hz (max. 7 displays: with optional Nvidia GTX 1660 6GB or Quadro RTX 4000 8GB)) |
| Network: 2 x GBit (Intel I219 + Intel I210) (opcionálisan 2 x 10 GBit; opcionális FACE modul: 4 x GBit vagy 4 x GBit +PoE vagy 2 x optikai LAN) |
| RAM type: max. 128GB RAM, 4 x UDIMM DDR4-2666 ECC or non-ECC |
| USB: 6 x USB 3.1 gen 1 type-A (optionally 3-4 USB port on FACE modul - FMAT3) |
| Serial port: 3 x full RS232 (optionally 6 more on FACE modul) |
| Audio: Stereo line-out | mic | optical S/PDIF | HDMI & DP audio (optional: FMAT3 line-out | mic) |
| Expansion: FACE expansion moduls (FM-AT3 Built-in-self-test LED indicators | 3x USB | audio | micro-SD | mini-PCIe) (FM-POE 4x Gbit Ethernet with PoE (PSE) | 2x USB 2.0) (FM-LANE4U4 4x Gbit Ethernet | 4x USB 2.0) (FM-OPLN 2x Optical Gbit Ethernet (SFP+) | 2x USB 2.0) (FM-SER 6x RS232 / RS485) (FM-XTDM2 2x mini-PCIe) |
| Power: DC 19V - 24V (redundant inlet, optionally + 1 external power brick) |
| Power consumption: 8W - 300W (in case of Quadro RTX 4000, double power brick recommended) |
| Temperature range: 0°C - 40°C (optionally -20°C - 70°C [TE] vagy -40°C - 70°C [TI]) |
| Dimension: 100mm x 300mm x 255mm |
| Housing: Alu housing, fanless, passive cooling, heat radiators on both sides of the house |
| Mounting: Optional VESA / DIN adapter |
| IoT support: Yes |
