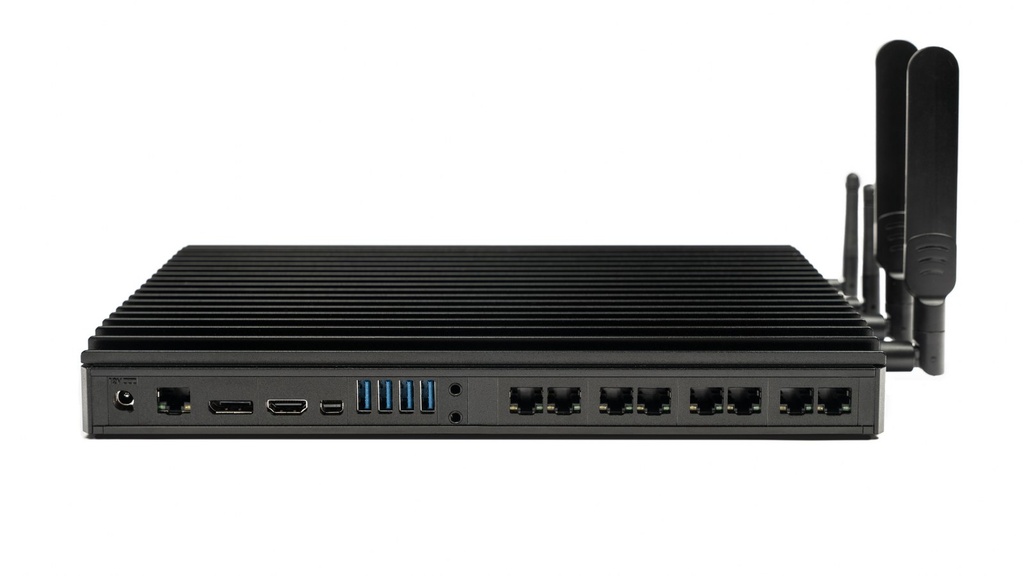

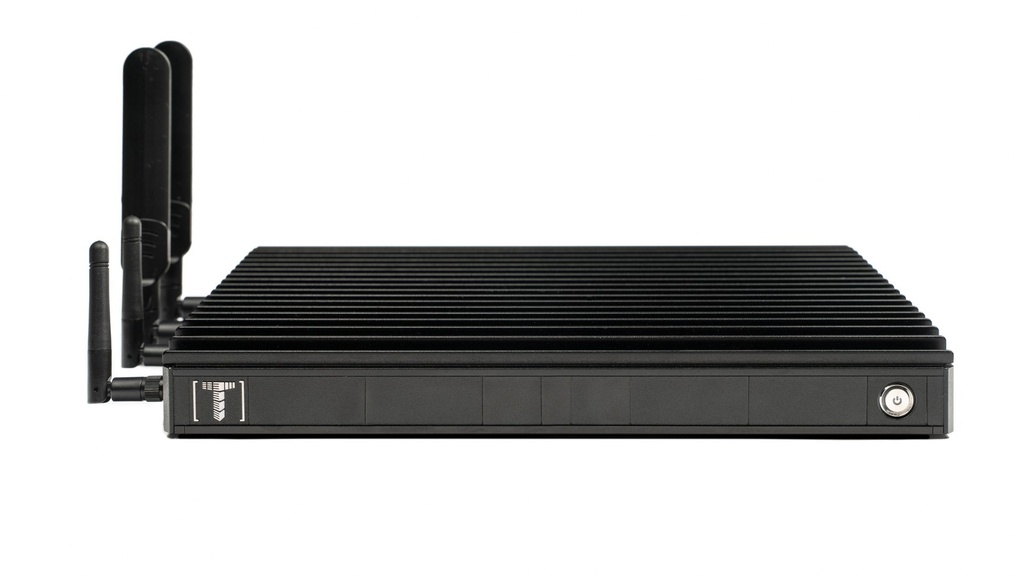

Tensor PC I20A Multi LAN
Tulajdonságok
- Intel Core i5-9300H CPU at 25W
- Up to 64GB DDR4 RAM
- 1x DisplayPort + 1x mini DisplayPort + 1x HDMI
- 1x M.2 Key-M for optional NVMe storage
- 9x 1GbE full-bandwidth LAN
- 4x USB 3.1
- 1x M.2 Key-E with Wi-Fi / BT module
- 1x M.2 Key-B for optional M.2 Cellular modem
- Headphones out + mic. in on 3.5mm jacks
- Power: 12V, including 100-240V 60W PSU and AC cord
- Enclosure: Width 30cm|Internal height 25mm|Ribs 10mm
- Dimensions: 20x30x3.5cm
TEL modulok a konfigurációban
1x PM-12V - Power module for 12VDC with twist lock, Incl. 60W PSU
2x TEL-LAN4 - 4x Gbit Ethernet
1x TEL-AUDIO - Analog headphones / line-out + microphone on 2x 3.5mm
1x TEL-USB3X4V - 4x USB 3.1 type A
1x TEL-NVME - Compartment for an M.2 NVMe SSD
1x TEL-STD - DisplayPort + Gbit Ethernet
1x TEL-M2B - Compartment for M.2 key-B card with SIM card tray + 2 antennas
1x TEL-M2E - Compartment for M.2 key-E card + 2 antennas
1x TEL-HDMIMINIDP - HDMI + mini DisplayPort
Opcionális kiegészítők
Modem: LTE Modem Sierra EM7455
TPM: TPM 2.0 Infineon SLM 9670AQ2.0
| CPU: Intel Core i5-9300H |
| Hálózat: 9 x GBit full bandwidth LAN + WiFi/Bluetooth AX200 |
| TPM: TPM nélkül |
